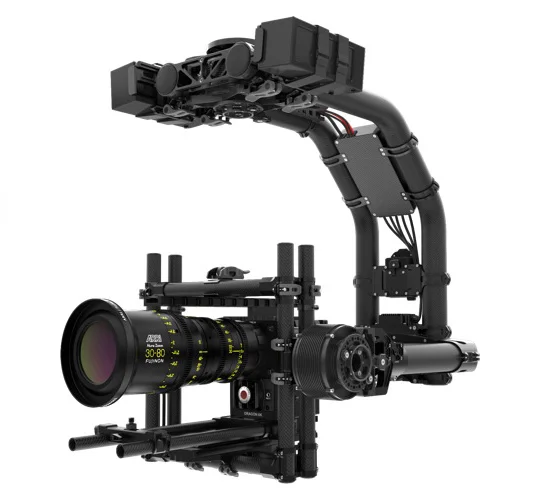

MoVI XL is the MoVI Pro's larger, more powerful brother, built to handle the biggest, heaviest, and most impressive camera packages used in cinema. Featuring a 22kg max payload and complete control over RED cameras as well as high performance GPS and compatibility with the Freefly API.

Efficiency & Smart Design
Freefly has gone all out to ensure maximum performance, placing motor drives right alongside their respective motors and moving the power distribution hub to the rear of the gimbal.

The motors have also been created with large hollow shafts, allowing the user to run any necessary wiring through the body of the gimbal to wherever they’re required without it becoming a tangled mess. This means that SDI or HDMI cable scan be run out of the gimbal into whatever secondary device you’re using. There is also a hole in the side of the camera cage which serves the same purpose.

The MoVI XL's development has benefitted from all of the lessons learned through years of professional gimbal manufacture and this dedication to constant improvement shows in the final product.

Simple Workflow & Sturdy Construction

Freefly has developed a new quick-release mechanism (with a simple slide & clamp action) to attach the gimbal to a vehicle/crane and numerous larger the pop and lock points, allowing users to mount accessories easily. They’ve also added in custom direct drive brushless motors and high-resolution encoders.

A gimbal of this size obviously need to be a sturdy bit of gear and, from what Freefly have demonstrated, it’s unlikely to disappoint. Featuring an improved vibration isolation system and high-performance GPS to monitor horizon stability even under harsh acceleration, this is a truly robust rig. This is especially evident when this level of acceleration can reach up to 100mph and still see great results from the gimbal.

There is also a reasonable level of weatherproofing as the core components are covered as much as possible while still allowing for heat dissipation from the gimbal's mechanical parts.

Long Battery Life & Lightweight Construction

The XL runs on a dual battery set-up (10AH, 6S 25.2V) which allows for completely wireless operation as a totally self-contained unit. According to the manufacturer, these batteries offer up to 3 hours of run-time for the camera & gimbal.

Despite being capable of carrying payloads of up to 50lbs, Freefly has used their experience of creating professional gimbals to retain a lightweight construction for ease of transport. This is due to a carbon fibre-based construction made up of 25mm tubes which form the camera cage and 50mm tubes everywhere else.

The design principle is similar to that of the MoVI PRO and as such, making adjustments to the gimbal (i.e. toggle clamps and sliding tubes) will be familiar to anyone who has experience with the smaller model.

Completely Wireless
No power conditioners, no wires, no hassle. MoVI XL is completely wireless for both command and power using the Freefly control ecosystem (MIMIC, MoVI Controller, Pilot) and our high power lithium batteries.

Top / Bottom Mount
Freefly invented the handheld stabilizer, and we have seen our customers mount the MoVI to just about anything and everything. MoVI XL is designed to mount in underslung or overslung mode without changing anything by flipping the roll axis over.

Freefly Ecosystem
MoVI XL is built to interface with the entire Freefly ecosystem. That means you can use MIMIC or MoVI Controller for gimbal pointing or camera control and hand the Pilot off to your 1st AC for FIZ control. -All wireless, and integrated into MoVI XL.

Lightweight

Quick Release
Cameras need to move to create compelling imagery. The optional quick release allows operators to quickly move the MoVI XL from jib, to car, to tripod, to dolly, to camel, all without any tools.

High Torque / Lightweight Motors
Freefly designs all motors in-house to our exacting specifications. This allows us to create motors that are lightweight without sacrificing peak power. We optimize motor cooling under load to make sure MoVI XL can execute any shot you can dream up.

100mph with Full Camera Package
Custom motors, drives, and high power batteries allow MoVI XL to hit speeds of up to 100mph (160km/h) without sacrificing control or stability.

1500W Peak Power
Designing the XL from the ground up allows Freefly to create a completely wireless system that can deliver 1500W peak power while only weighing 25lbs. The power per pound on MoVI XL is off the charts…

Accessory Power
MoVI XL is designed to make camera and accessory setup painless. The dual 10Ah 22.2v batteries provide power for the MoVI XL and, as well as the following accessory ports and will run the system for up to 3+ hours

RED RCP
Freefly has tightly integrated the MoVI XL with RED cameras to allow users access to RED camera controls from six hundred feet away using MoVI Controller, Pilot, or MIMIC.

Built in FIZ / Power
MoVI XL features the world’s smallest, fully integrated, 3 axis lens control system built into the camera stage. Control all 3 channels with either the Pilot, MoVI Controller, MIMIC, or a combination of the 3 systems.

Internal Wiring
MoVI XL features internal wiring to prevent damage / snags during usage. We also included protective ‘e-chain’ for pan wiring and designed the wiring with serviceability and in-field replacement in mind. Each motor features a hollow shaft to allow users to easily route cables through the gimbal.

Modular Construction
MoVI XL features the modular and expandable design that Freefly is known for. This means users can tweak, tune, and adjust the MoVI XL for their specific application.

2 Sec. Boot Time 10 Sec. Autotune
Seconds count on set. MoVI XL boots in 2 seconds, and autotunes in 10 seconds. Go from zero to shooting in under 15 seconds.

Autotune
MoVI XL features Freefly’s advanced Autotune which automatically finds optimal tuning and filter values in under 10 seconds. Tuning gains will no longer be a part of gimbal operations with MoVI XL.

Stability
MoVI XL updates camera pointing one thousand times per second. This means stable shots in the most demanding environments.

-Custom in house designed high torque direct drive motors
-Axis locks for easy ground handling / balancing
-Custom motor drives with high resolution encoders
-Capable of performing at extreme speeds (75+mph)
-Accessory power
-Integrate Focus / Iris / Zoom motor drivers
-Integrated control of Red cameras via RCP
-3+ hour runtime powering gimbal and camera with onboard batteries (Sold Separately)
-Completely wireless operation (power, video, control) allows for 1 minute changes    from camera car to crane to cable cam
-Underslung or overslung mounting
-Compatible with Freefly Ecosystem - MoVI Controller, MIMIC, Pilot
-50lb max payload
-Capable of traveling as excess baggage on airlines
-Quick Release system (Optional)
-Travel case with custom cut foam insert (Optional)
-Modular construction
-Internal Wiring
2 second boot time
10 second full system autotune (no more manual tuning!)
Integrated screen and menu system
iOS and Android App for control, configuration, and feedback.

Compatibility Freefly API
Power Dual Battery
Payload 22kg
Weight (w/o batteries) 25.26lb
Camera cage dimensions 399 x 255 x 289mm (L*W*H)
Maximum payload 50lb (22.67Kg)
